LeLand DA100 - Dual Action Mixer

Model DA-Series (Field-Identified as DA150/DA100 Class)

This heavy-duty dual-action mixer from Leland is designed for efficient, high-consistency blending of meat, seasonings, and dry ingredient batches. Though the original factory tag does not display a model number, the unit aligns closely in size and configuration with the DA100-series mixers commonly used in small to mid-scale processing environments.

Key Features

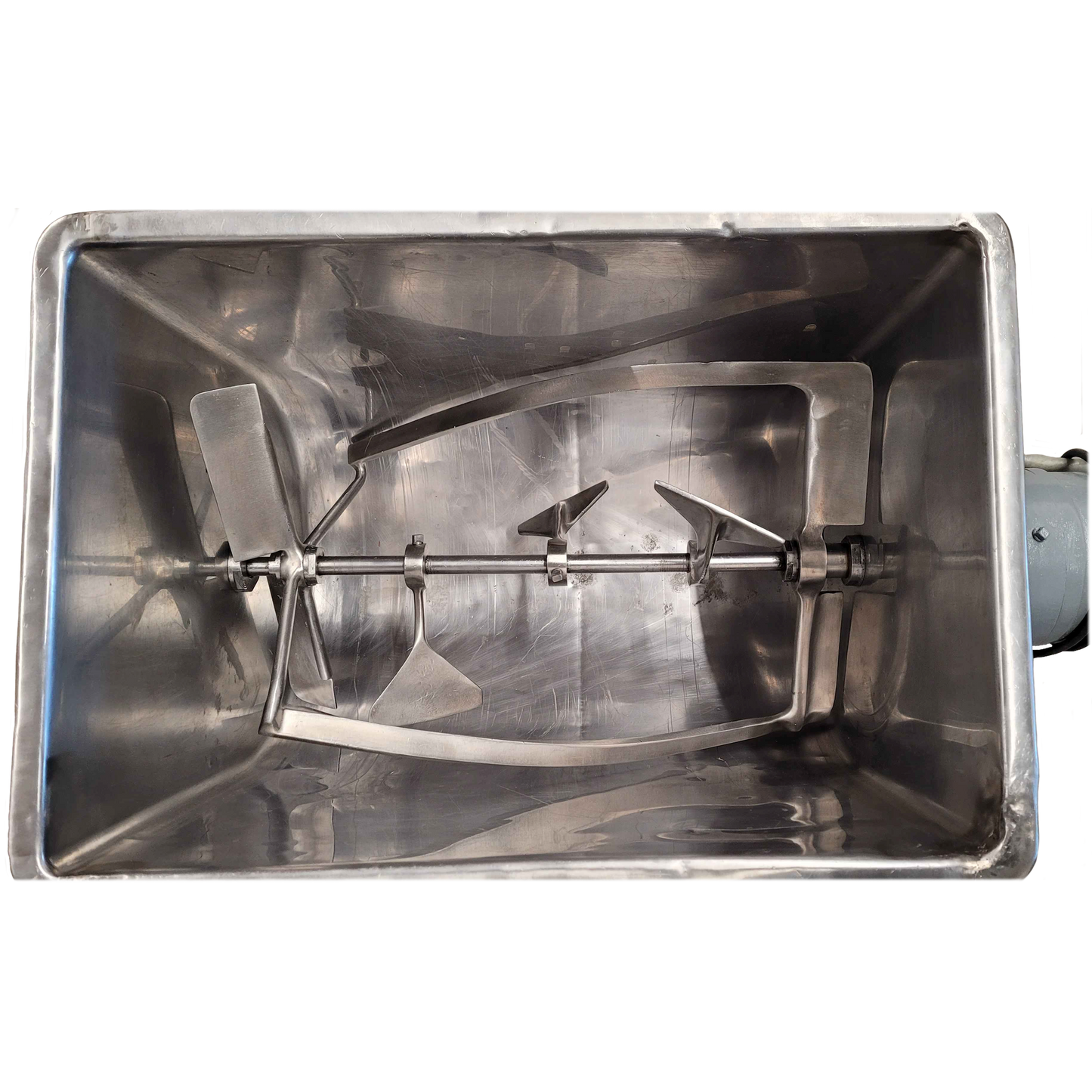

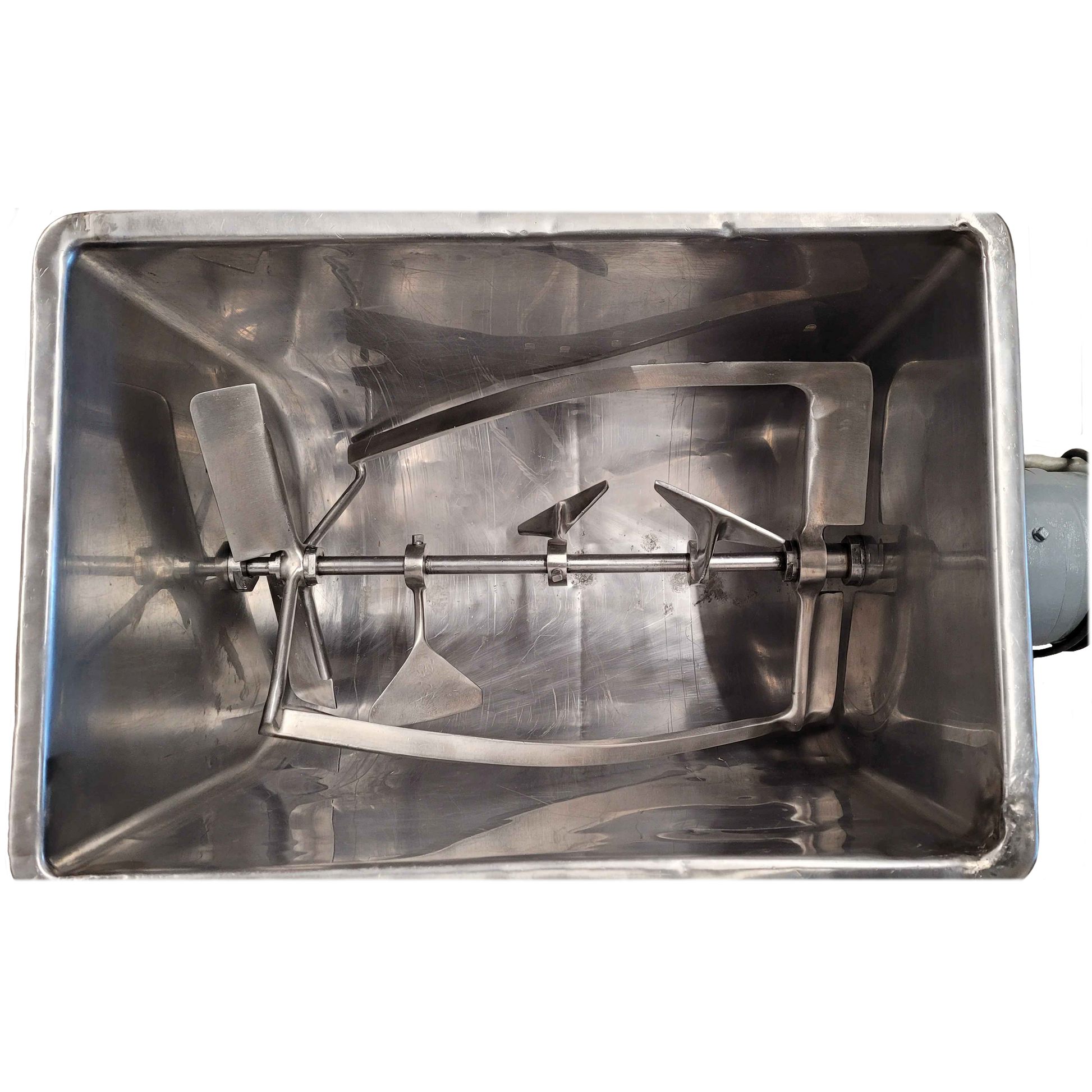

• Dual-Action Paddle System
  Counter-rotating paddles provide thorough, uniform mixing while maintaining product texture and reducing over-work.
• Stainless Steel Mixing Trough
  Durable, easy-to-clean tub suitable for meat, dry blends, or general food processing.

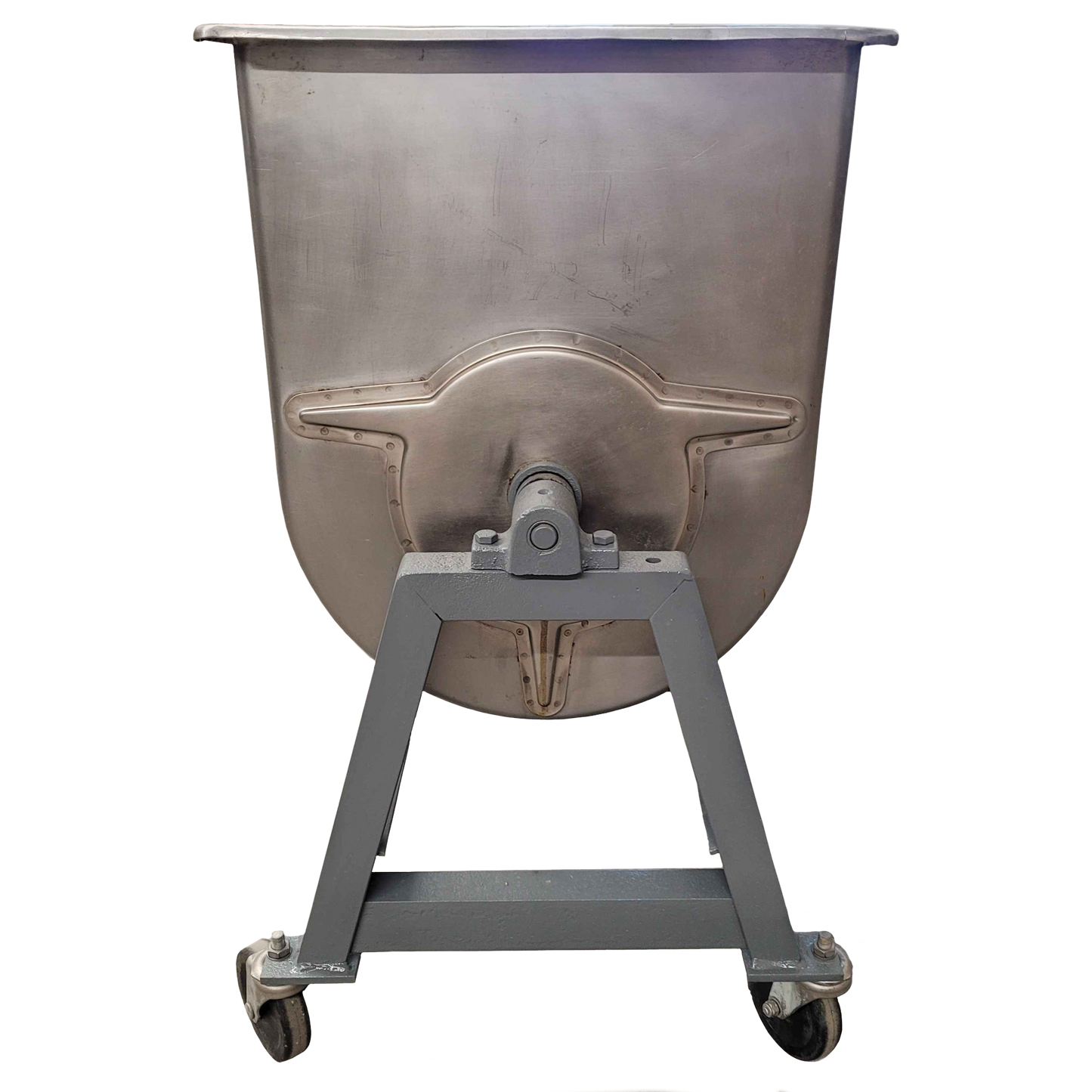

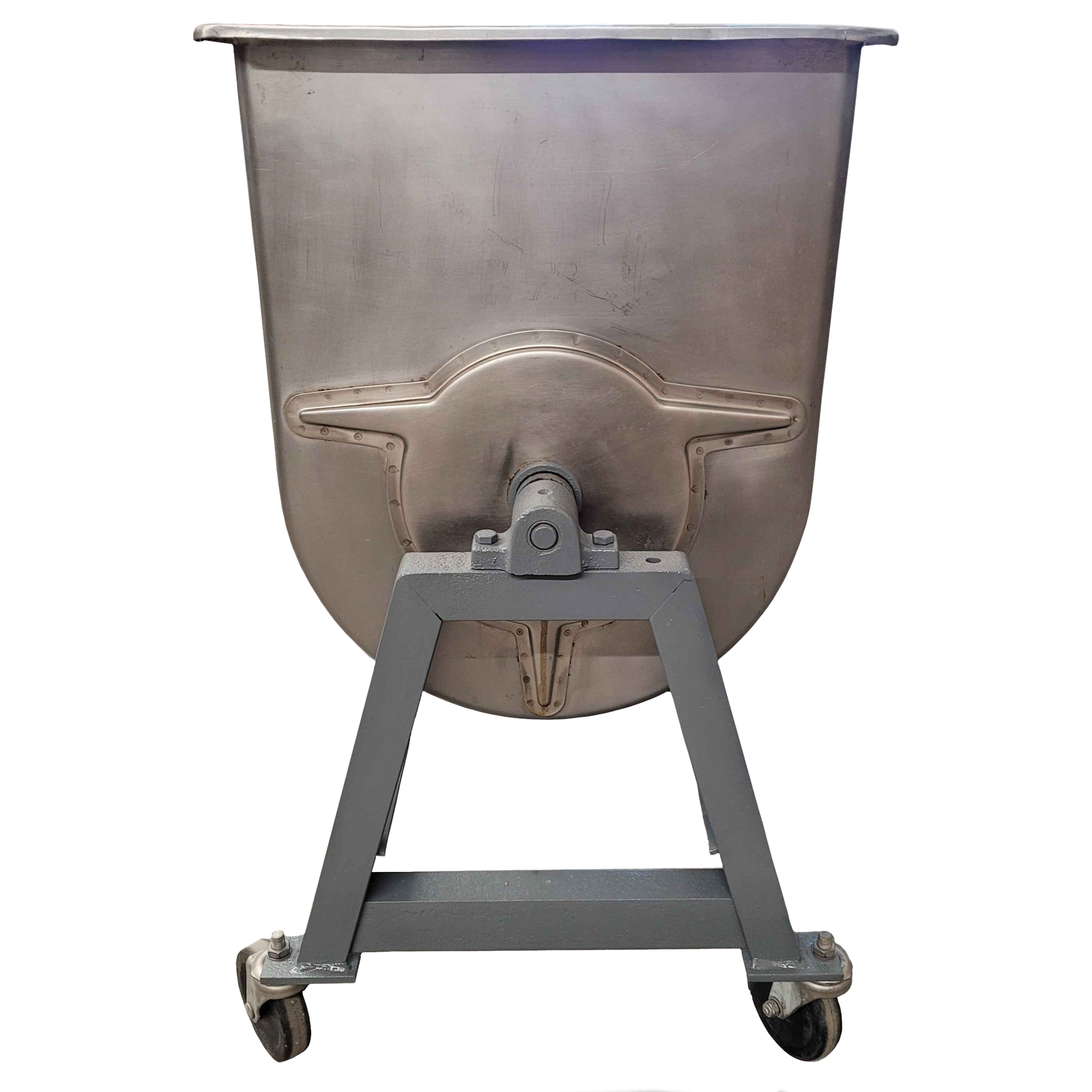

• Tilting Design
  Hand-lever tilt mechanism allows quick and controlled emptying of the batch.

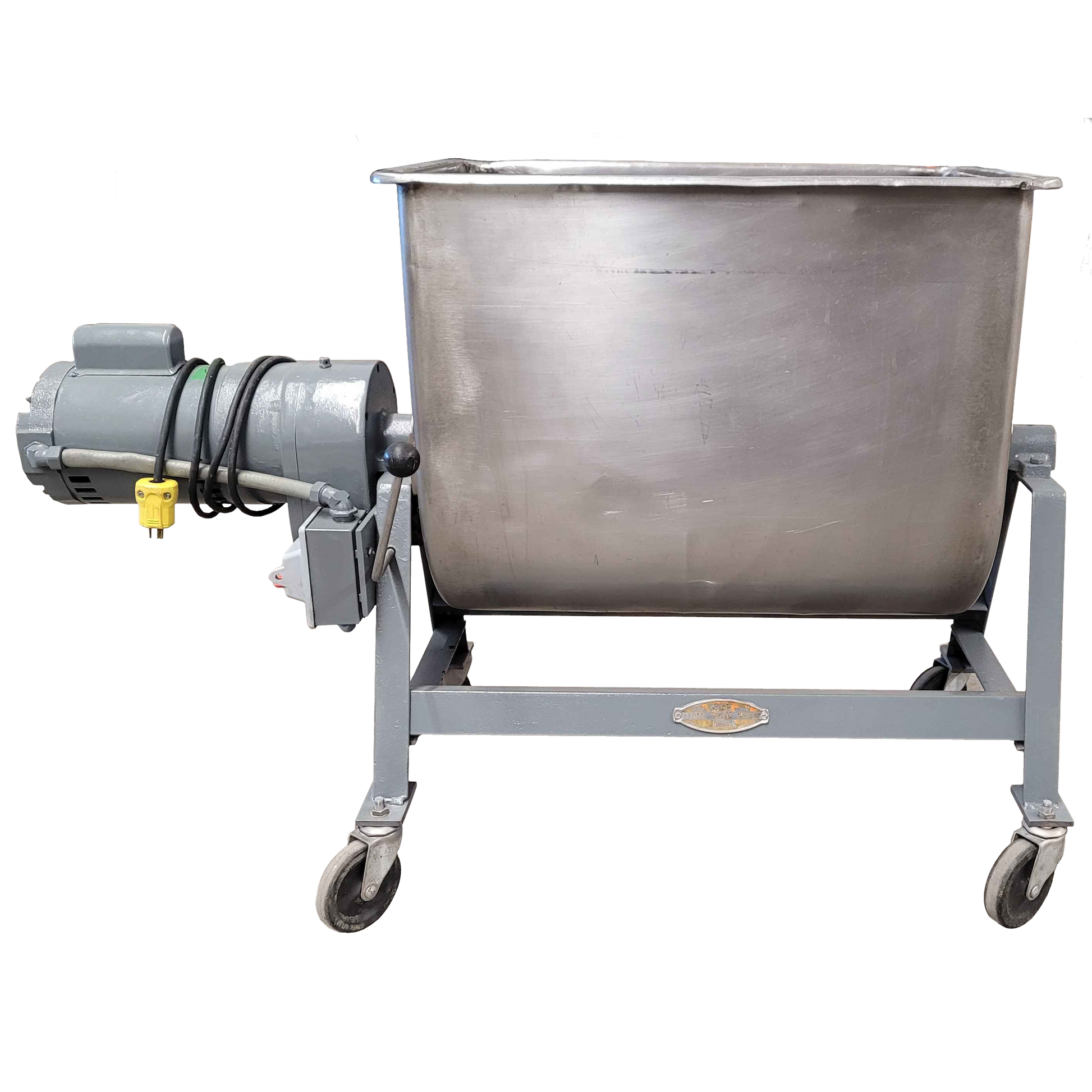

• Portable Frame
  Heavy-gauge steel stand with 4 locking casters for easy movement and secure operation.

Motor & Electrical Specs

Based on the attached Reliance motor plate:

• Horsepower: 1/2 HP
• Voltage: 115/230V (wired for 115V operation)
• Phase: Single Phase
• RPM: 1725
• Amps: 9.4 / 4.7 A
• Cycle: 60 Hz
• Frame: R56
• Model of Motor: U338C

Estimated Capacity (Based on DA100/DA150 Class)

• Typical usable mixing capacity: 80–100 lbs of product
  (Exact capacity unverified; physical dimensions suggest standard DA100-class volume.)

Construction

• Heavy steel base, freshly coated
• Stainless steel tub and paddles
• Simplified control box with safety-rated power switch
• Manual tilt discharge

Applications

• Small to medium meat processing
• Seasoning and dry blend mixing
• Test batches and R&D formulation
• General food-grade mixing tasks

Notes

This machine appears to be a Leland Dual Action Mixer from the DA-Series. The exact model “DA150” cannot be confirmed from any available documentation, but the unit aligns with Leland’s traditional DA100 size and design. All specifications listed above are based on field inspection and motor plate data.
